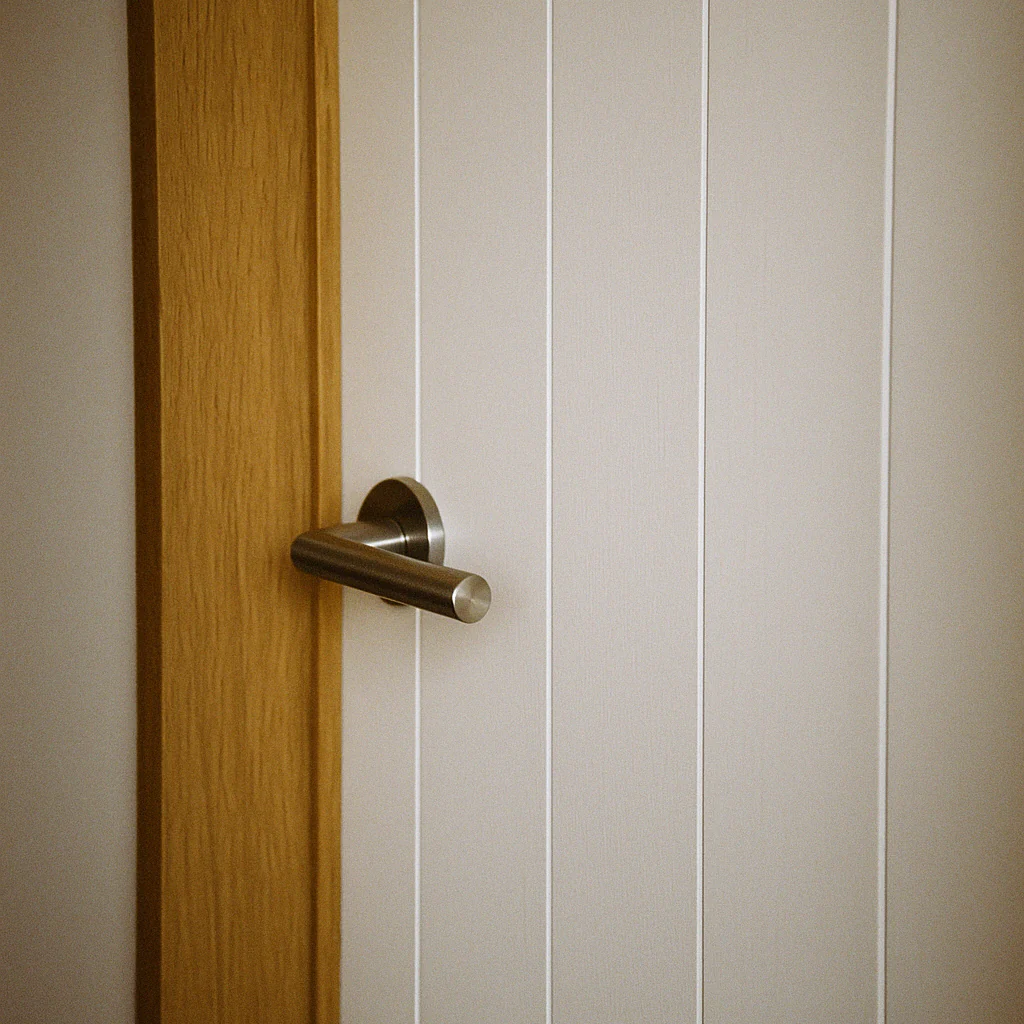

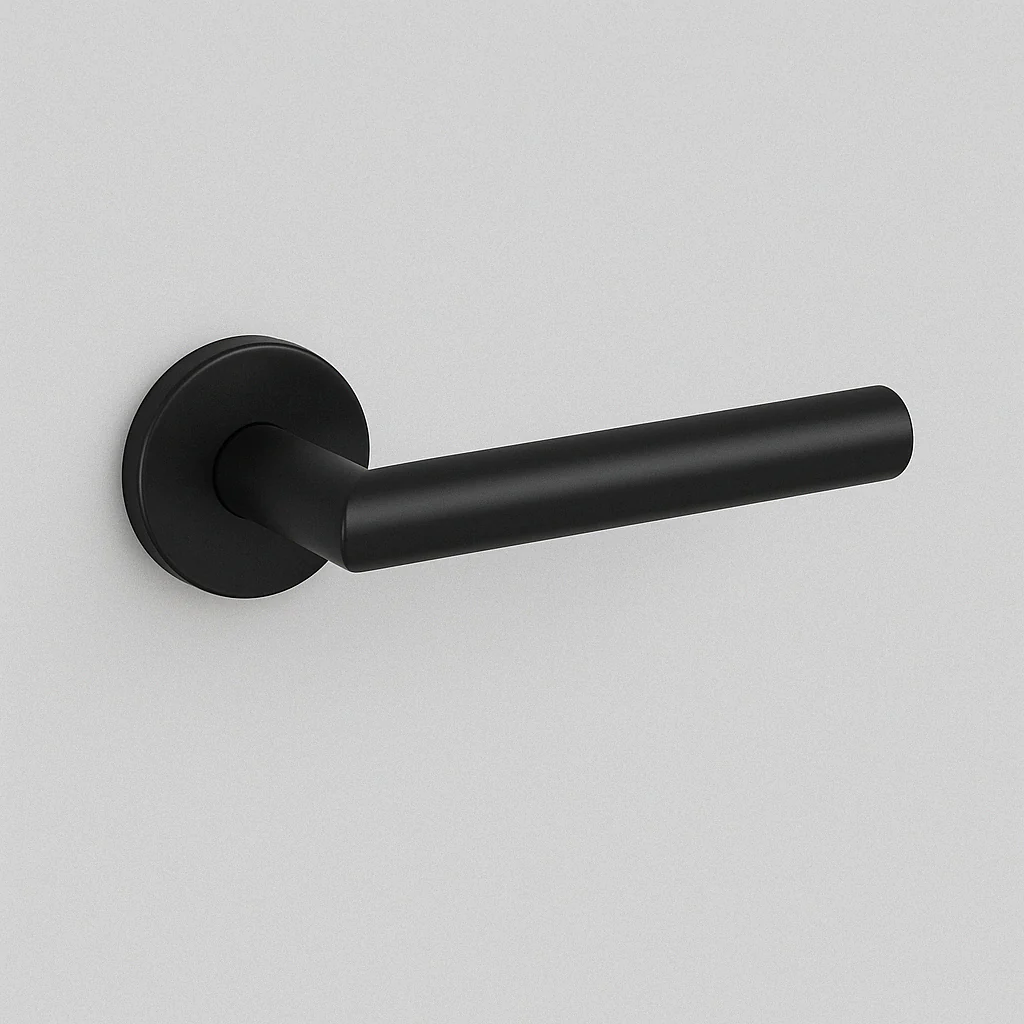

The AHI 103 Door Lever by AHI is a slim cylindrical lever crafted from hollow stainless steel, offering clean minimal lines and a refined utilitarian profile. A smaller version of the AHI 104, it balances understated design with practical function for interior doors in both residential and commercial settings.

Available in passage, privacy, and dummy configurations. Four rose styles (two circular, two square) allow coordination with standard and oversized bore preparations.

Specifications

• Lever Dimensions: L 141 mm (5.56") × W 19 mm (0.75")
• Door Thickness: 1 3/8" – 2"
• Thumb Turn: Push/pull pin on rose
• Rose Options:
  • Rose 200 (Circle SM): Ø 52 mm (2 1/16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
  • Rose 201 (Circle LG): Ø 62 mm (2.44") × D 10 mm (0.3") · Fits Ø 53.97 mm (2.12") bore hole
  • Rose 203 (Square SM): 55 mm × 55 mm (2.16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
  • Rose 204 (Square LG): 64 mm × 64 mm (2.5") × D 10 mm (0.5") · Fits Ø 53.97 mm (2.12") bore hole

Ordering Guide

Materials

Hollow stainless steel construction.

Available Finishes

• Satin Stainless Steel
• Mirror-Polish Stainless Steel
• Powder Coat

Product Downloads

Product Sheets

• Rose 200
• Rose 201
• Rose 203
• Rose 204

Installation & Care

• Door Lever No.103 Installation Guide
• Door Lever No.103 Heavy Duty Installation Guide
