AHI 103 Door Lever Set — Passage
The AHI 103 Door Lever — Passage by AHI is a hollow stainless steel lever set in passage configuration, providing a latching closure without a locking mechanism. Suited to hallways, closets, and interior doors where secure closure is needed but privacy locking is not required.
Includes a pair of levers, tubular latch, and strike plate. Four rose styles accommodate standard and oversized bore preparations.
Specifications

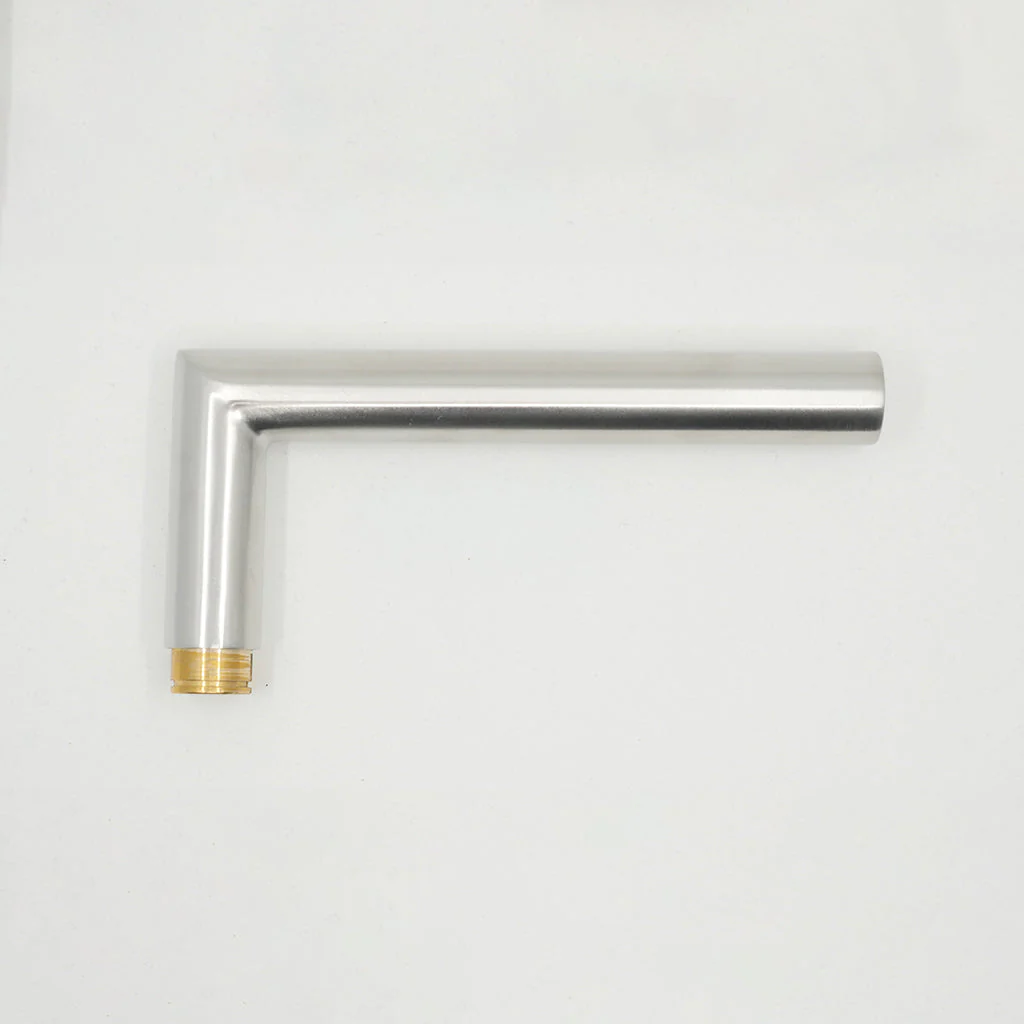

- Lever Dimensions: L 132 mm (5.2") × W 23 mm (0.87")
- Door Thickness: 1 3/8" – 2"
-
Rose Options:

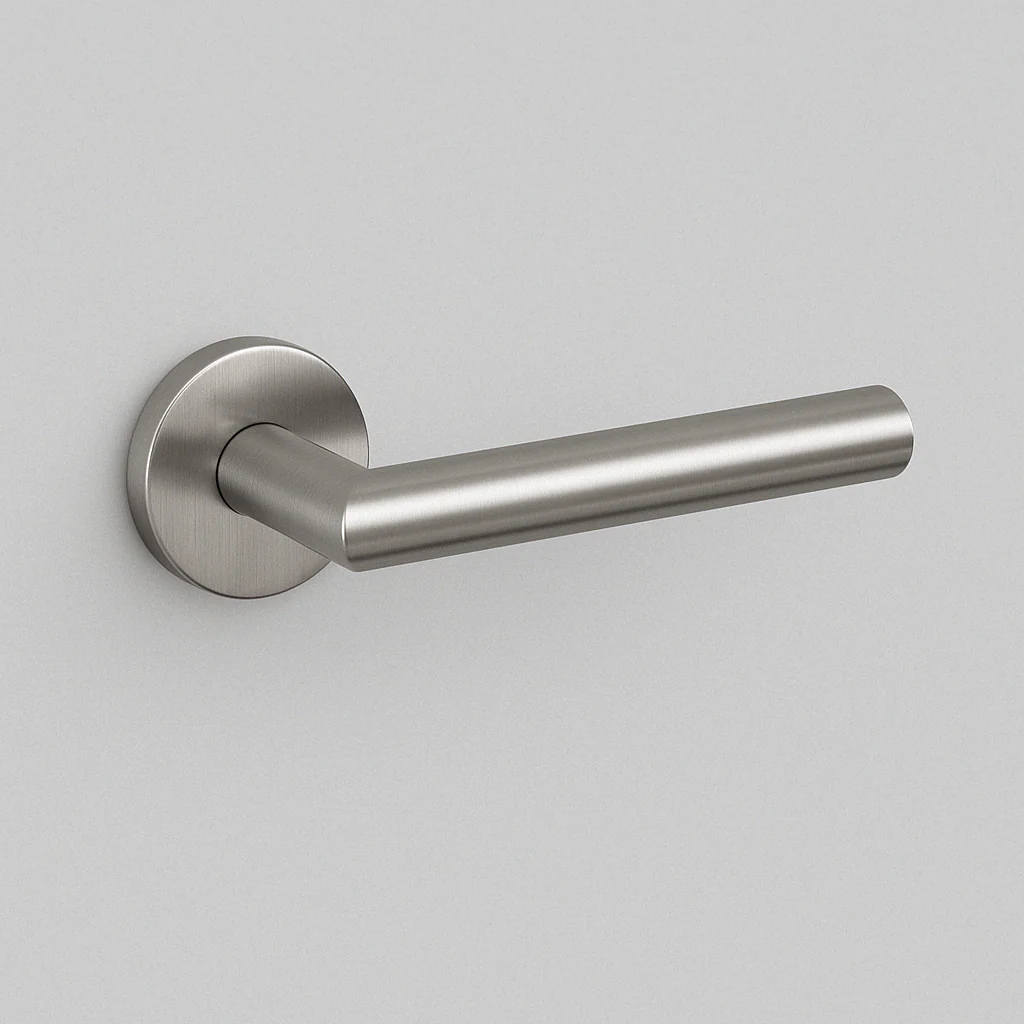

- Rose 200 (Circle SM): Ø 52 mm (2 1/16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
- Rose 201 (Circle LG): Ø 62 mm (2.44") × D 10 mm (0.3") · Fits Ø 53.97 mm (2.12") bore hole

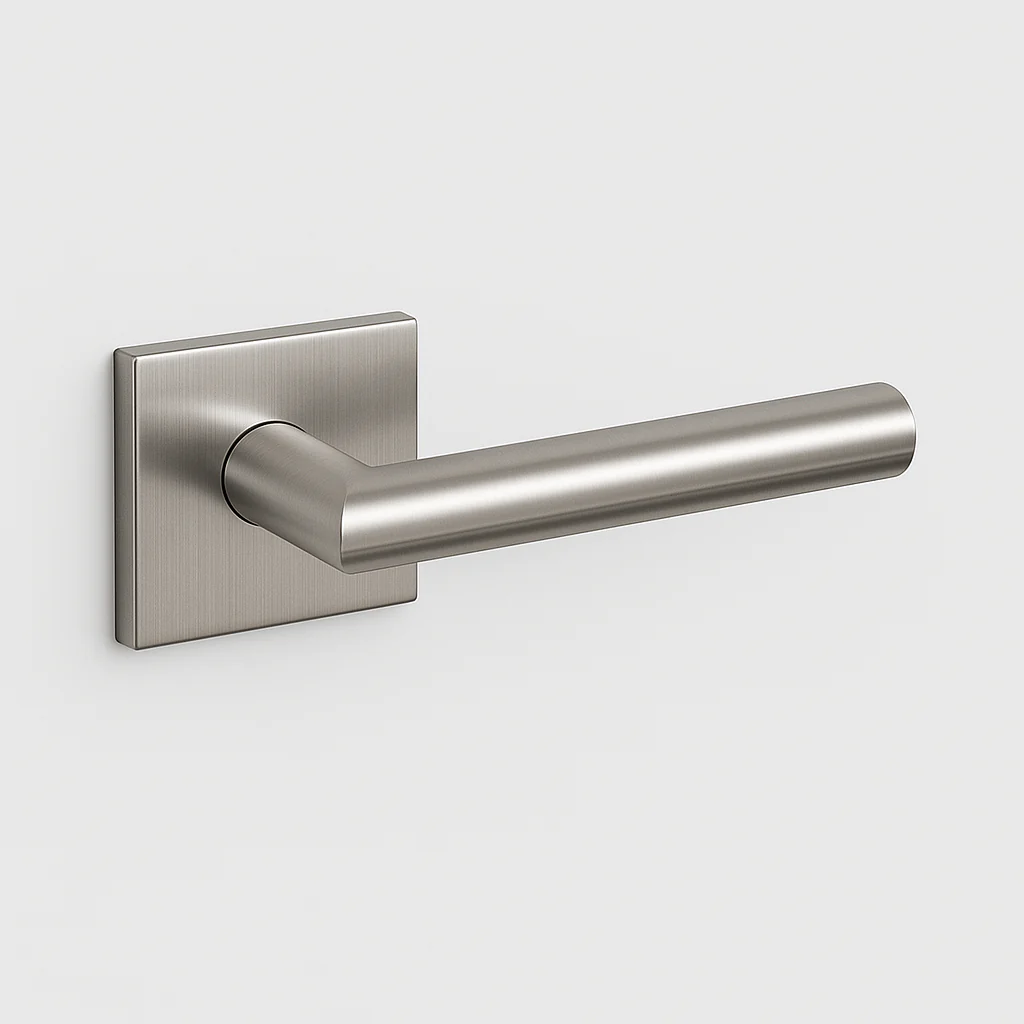

- Rose 203 (Square SM): 55 mm × 55 mm (2.16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
- Rose 204 (Square LG): 64 mm × 64 mm (2.5") × D 10 mm (0.5") · Fits Ø 53.97 mm (2.12") bore hole
Materials
Hollow stainless steel construction.
Available Finishes
- Satin Stainless Steel
- Powder Coated Black
