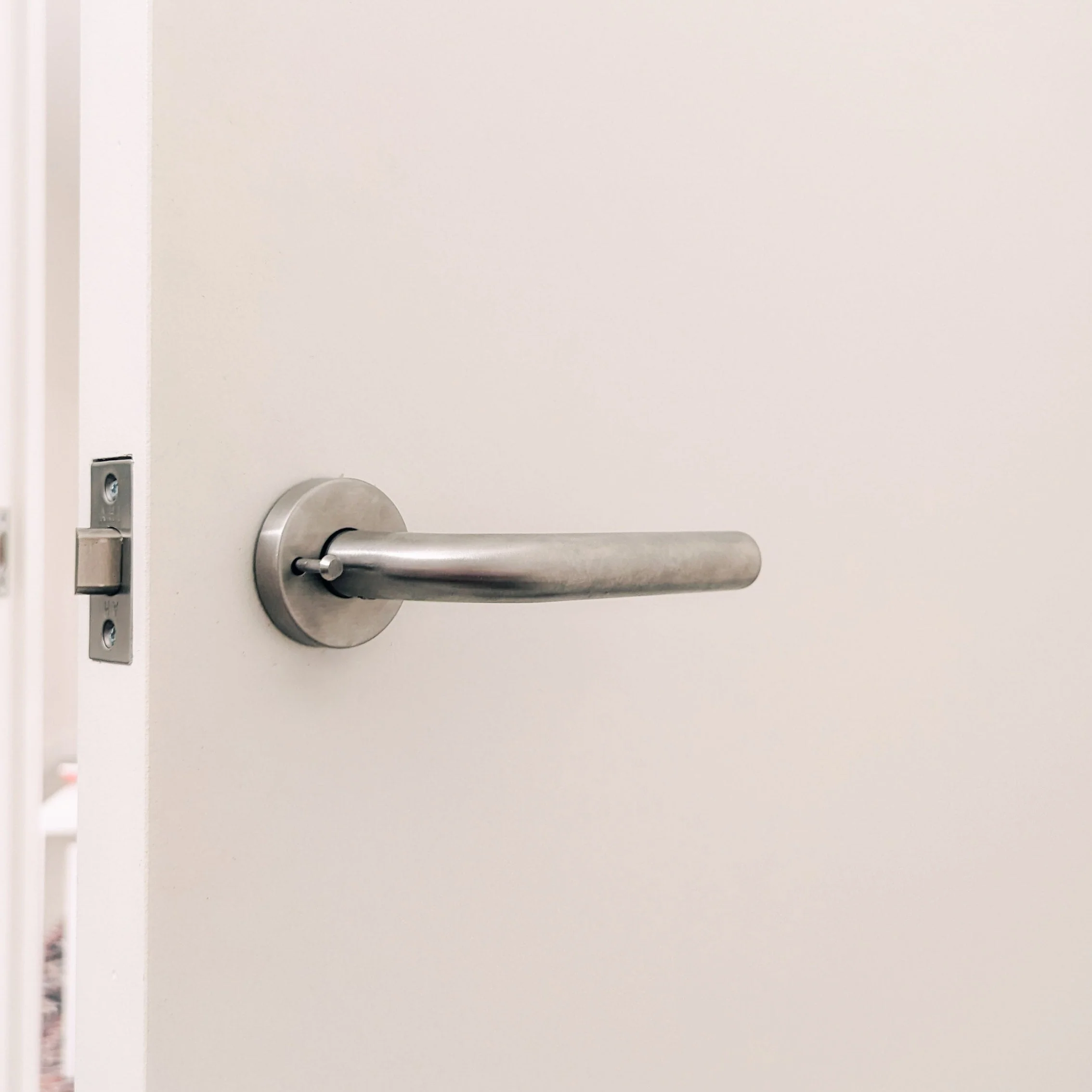

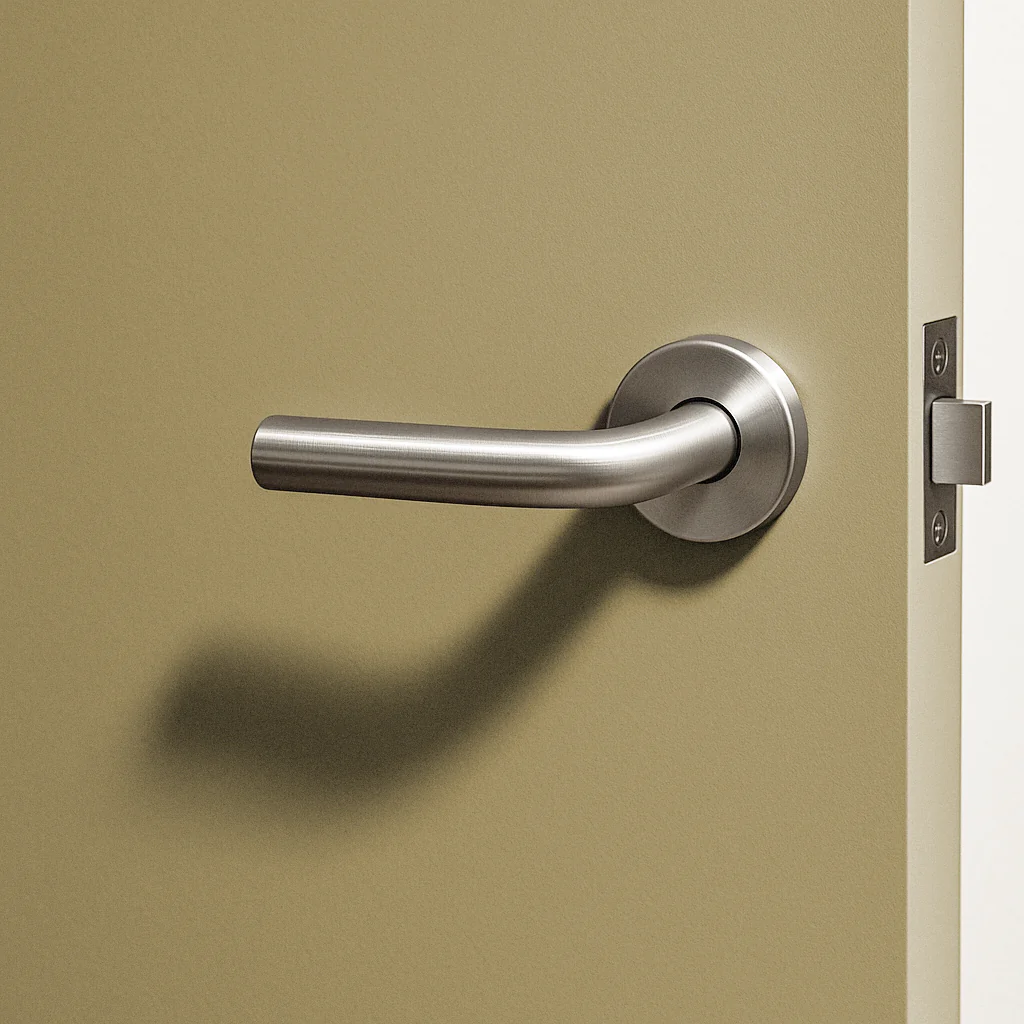

The AHI 105 Door Lever Set by AHI is a hollow stainless steel door lever with a slim cylindrical profile and smooth, gently curved form. It balances refined utility with understated design, suitable for interior doors in both residential and commercial settings.

Available in passage, privacy, single dummy, and double dummy configurations. Sold as a complete set with all required mounting components for the selected function.

Specifications

• Lever Dimensions: L 141 mm (5.56") × W 22 mm (0.87")
• Door Thickness: 1 3/8" – 2"
• Thumb Turn: Push/pull pin on rose
• Rose Style:
  • Circle SM: Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG: Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole
  • Square SM: 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG: 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Ordering Guide

Materials

Hollow stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

Product Downloads

• AHI 105 Spec Sheet (PDF)
• AHI 105 Drawing 2D (PDF)
