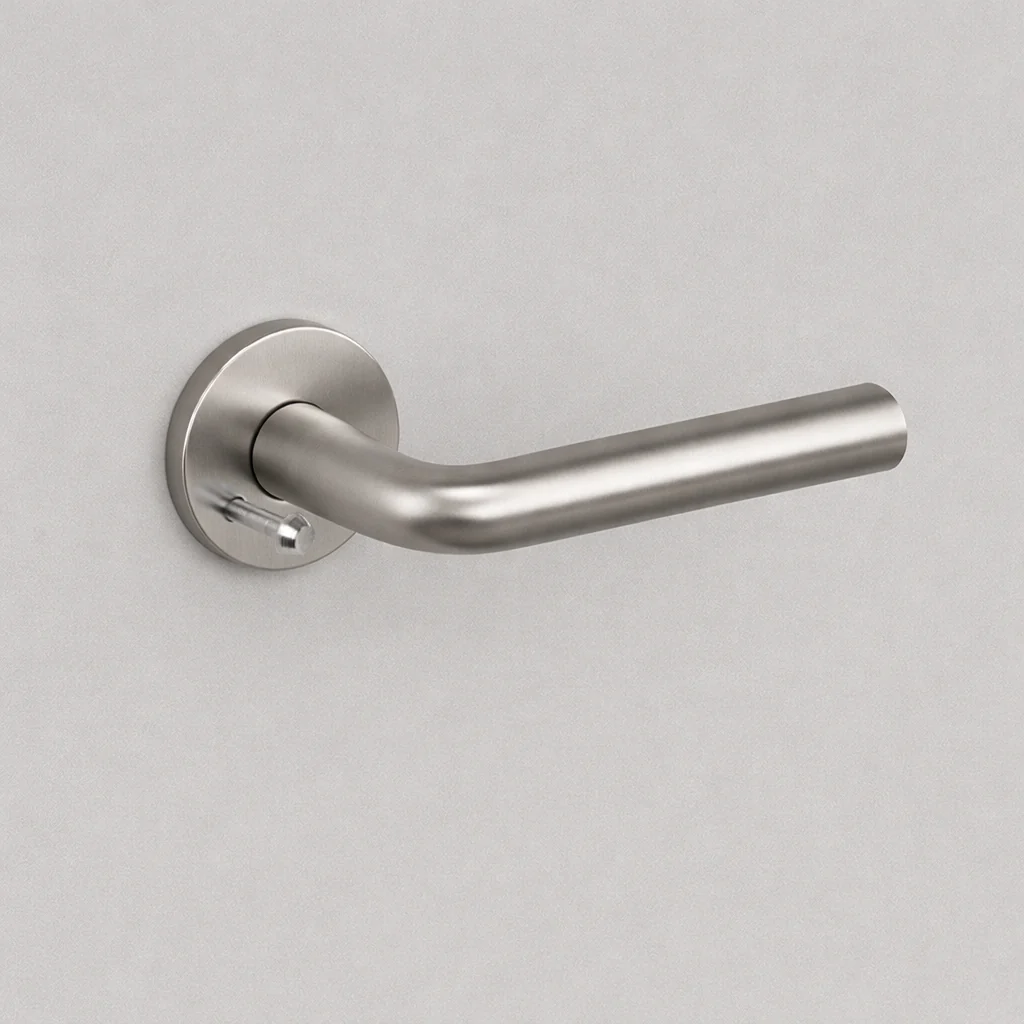

The AHI 105 Privacy Lever by AHI is a hollow stainless steel door lever with a slim cylindrical profile and gently curved form, configured for privacy function — doors that lock from one side via a push/pull pin. Ideal for bathrooms and bedrooms.

Also available in passage, single dummy, and double dummy configurations.

Specifications

• Lever Dimensions: L 141 mm (5.56") × W 22 mm (0.87")
• Door Thickness: 1 3/8" – 2"
• Thumb Turn: Push/pull pin on rose
• Rose Style:
  • Circle SM: Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG: Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole

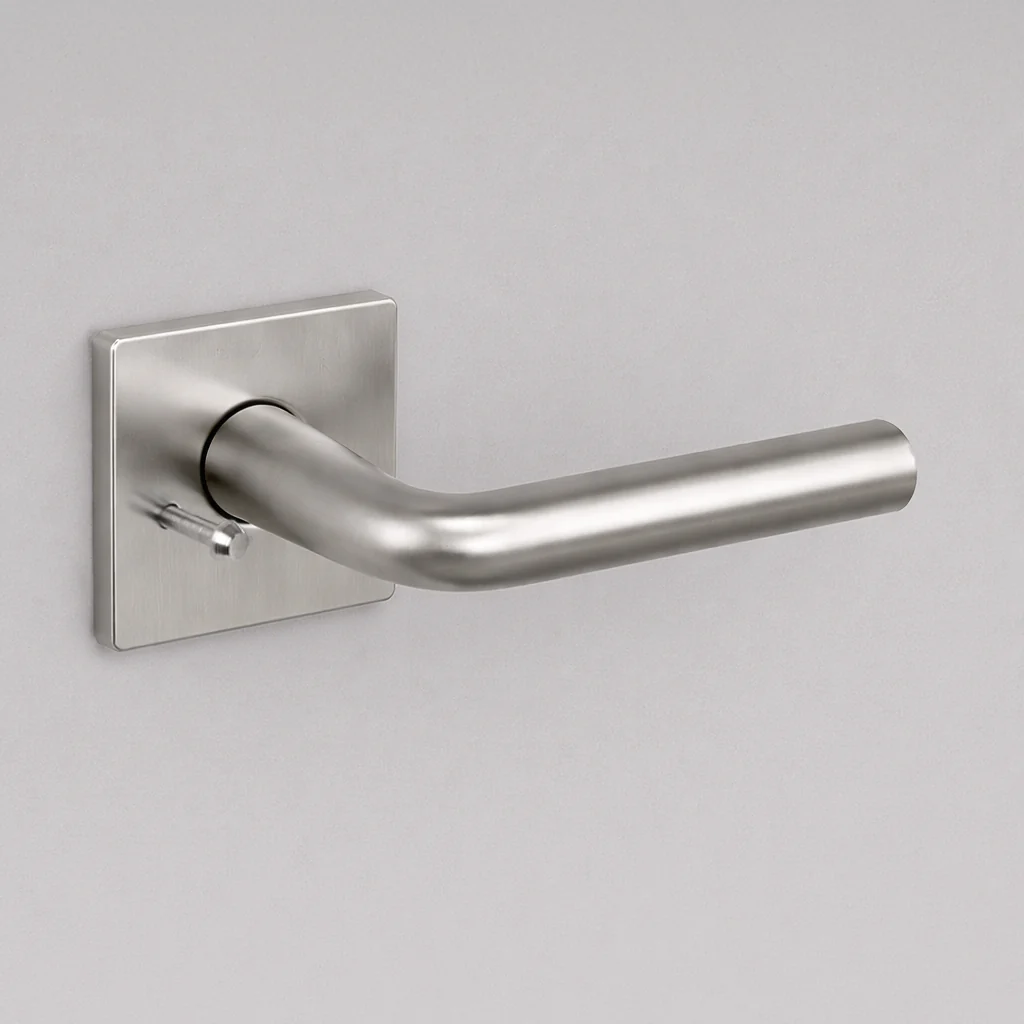

  • Square SM: 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG: 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Casson is not responsible for damages resulting from improper installation.

Materials

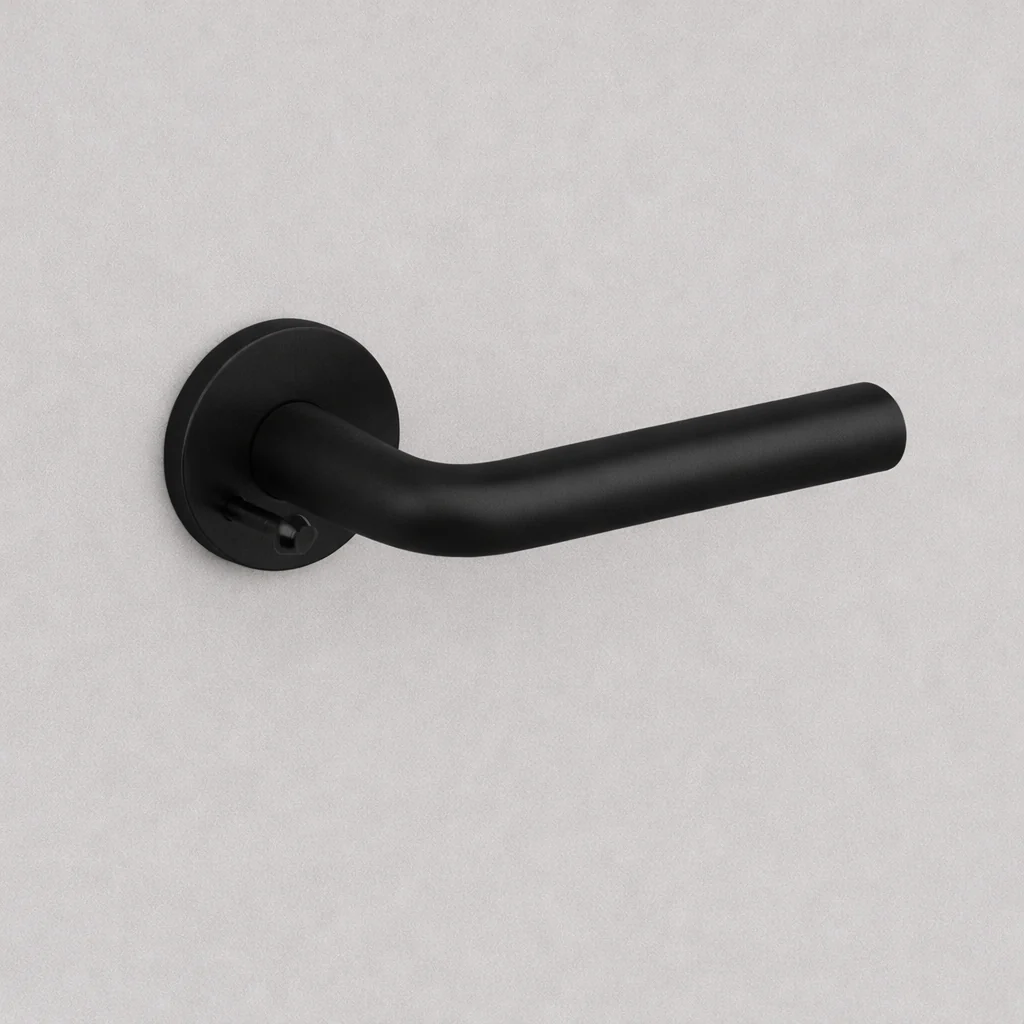

Hollow stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

Product Downloads

• AHI 105 Spec Sheet (PDF)
• AHI 105 Drawing 2D (PDF)
